Basic Requirement and Downloads
1.Download New version of SP Tool (SP_Flash_Tool_v3.1304.0.119) from here : FT3.13.04.rar or SP Tool 3.13.4
2.Download 4.2.1 stock ROM (SP tool flashable only) from here: 116 4.2 all.rar
3.Extract the “S9201_4.2_MP_F3F8_B1_IN_MMX_09_FLASHER_USER” folder from the 4.2.1 Stock Rom RAR file (actual RAR file name 116 4.2 all.rar)
4.Extract the SP tool folder “SP_Flash_Tool_v3.1304.0.119” from the downloaded FT.3.14.04.rar file
5.For Rooting and Custom Recovery– Download CWM 6.0.3.3 or TWRP 2.5.0.0, SuperSU-v1.25.zip and scatter_emmc.
6.Copy the SuperSU-v1.25.zip to SDCARD.
Installation Process.

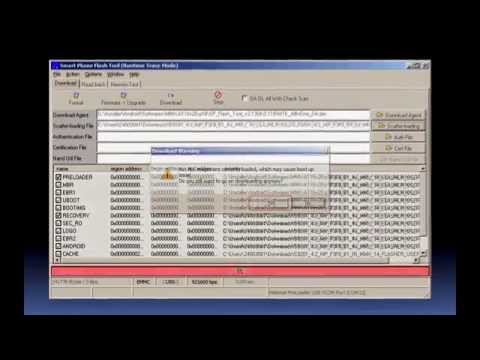

1. Run the Flash_tool.exe as Administrator from the SP_Flash_Tool_v3.1304.0.119
2. Select the MT6589_Android_scatter_emmc.txt from the subfolder of S9201_4.2_MP_F3F8_B1_IN_MMX_09_FLASHER_USER
3. Check the Option > USB Mode selected
4. Check the Option > DA Download All > Speed > Force to High Speed selected
5. Click on Download
6. Switch off Your Handset (MMX A116 only) and remove the battery.
7. Connect the battery (don’t try to switch on)
8. Connect the USB cable and let SP Tool to search your handset and download the ROM
**Don't interrupt this process as it can potentially brick your device.
9. In this process the Progress bar will become RED 100%, then INDIGO 100% and finally YELLOW 100%, the entire Process will take around 2-3min only
10. One Green Circle will come after successful installation.
11. Now you can switch on your handset.
For Rooting
1. Run the Flash_tool.exe as Administrator from the SP_Flash_Tool_v3.1304.0.119
2. Select the MT6589_Android_scatter_emmc.txt which you have downloaded from scatter_emmc
3. Select only the Custom Recovery file download “recovery.img” and let unselect other files.
4. Check the Option > USB Mode selected
5. Check the Option > DA Download All > Speed > Force to High Speed selected
6. Click on Download
7. Switch off Your Handset (MMX A116 only) and remove the battery.
8. Connect the USB cable and let SP Tool to search your handset and download the ROM
**Don't interrupt this process as it can potentially brick your device.
9. In this process the Progress bar will become RED 100%, then INDIGO 100% and finally YELLOW 100%, the entire Process will take around 2-3min only
10. One Green Circle will come after successful installation.
11. Disconnect the USB Cable and Connect the Battery - do not switch on now.
12. Boot in to recovery mode by processing (Volume Up) + (Volume Down) + (Power Buttons)
13. It will show you a screen as Recovery Mode: Volume Up, press the Volume Up.
14. Select install zip from SDCARD and locate and select the SuperSU-v1.25.zip which you copied earlier
15. After installation complete message, reboot your handset.
1.Download New version of SP Tool (SP_Flash_Tool_v3.1304.0.119) from here : FT3.13.04.rar or SP Tool 3.13.4
2.Download 4.2.1 stock ROM (SP tool flashable only) from here: 116 4.2 all.rar
3.Extract the “S9201_4.2_MP_F3F8_B1_IN_MMX_09_FLASHER_USER” folder from the 4.2.1 Stock Rom RAR file (actual RAR file name 116 4.2 all.rar)
4.Extract the SP tool folder “SP_Flash_Tool_v3.1304.0.119” from the downloaded FT.3.14.04.rar file
5.For Rooting and Custom Recovery– Download CWM 6.0.3.3 or TWRP 2.5.0.0, SuperSU-v1.25.zip and scatter_emmc.
6.Copy the SuperSU-v1.25.zip to SDCARD.
Installation Process.
1. Run the Flash_tool.exe as Administrator from the SP_Flash_Tool_v3.1304.0.119
2. Select the MT6589_Android_scatter_emmc.txt from the subfolder of S9201_4.2_MP_F3F8_B1_IN_MMX_09_FLASHER_USER
3. Check the Option > USB Mode selected
4. Check the Option > DA Download All > Speed > Force to High Speed selected
5. Click on Download
6. Switch off Your Handset (MMX A116 only) and remove the battery.
7. Connect the battery (don’t try to switch on)
8. Connect the USB cable and let SP Tool to search your handset and download the ROM
**Don't interrupt this process as it can potentially brick your device.
9. In this process the Progress bar will become RED 100%, then INDIGO 100% and finally YELLOW 100%, the entire Process will take around 2-3min only
10. One Green Circle will come after successful installation.
11. Now you can switch on your handset.
For Rooting
1. Run the Flash_tool.exe as Administrator from the SP_Flash_Tool_v3.1304.0.119
2. Select the MT6589_Android_scatter_emmc.txt which you have downloaded from scatter_emmc
3. Select only the Custom Recovery file download “recovery.img” and let unselect other files.
4. Check the Option > USB Mode selected
5. Check the Option > DA Download All > Speed > Force to High Speed selected
6. Click on Download
7. Switch off Your Handset (MMX A116 only) and remove the battery.
8. Connect the USB cable and let SP Tool to search your handset and download the ROM
**Don't interrupt this process as it can potentially brick your device.
9. In this process the Progress bar will become RED 100%, then INDIGO 100% and finally YELLOW 100%, the entire Process will take around 2-3min only
10. One Green Circle will come after successful installation.
11. Disconnect the USB Cable and Connect the Battery - do not switch on now.
12. Boot in to recovery mode by processing (Volume Up) + (Volume Down) + (Power Buttons)
13. It will show you a screen as Recovery Mode: Volume Up, press the Volume Up.
14. Select install zip from SDCARD and locate and select the SuperSU-v1.25.zip which you copied earlier
15. After installation complete message, reboot your handset.
